An independent bench test this site already cites measured dowel joints at more than one and a half times the strength of pocket-hole joints. Eight jigs, pin assortments and dowel centers compared on the only thing that matters - whether hole two lines up with hole one.
Here is the number that makes this page worth your time. In the independent bench test this site cites elsewhere — spruce samples loaded 15 cm from the joint — dowel joints failed at 160, 160 and 149 lb, an average of 156 lb, while pocket-hole joints averaged 99 lb. Mortise-and-tenon samples managed 222 lb. So the dowel joint sits almost exactly halfway between the fast joint most beginners start with and the traditional joint most beginners are intimidated by, and it is a bit over one and a half times as strong as the one they start with.
That is not an argument against pocket screws. Pocket holes are still the fastest way to build a cabinet and this site still recommends them for a first project. It is an argument that there is a second joint worth learning, it needs one inexpensive tool, and it leaves no visible plug — which is the real reason to reach for it. A pocket screw on the inside of a cabinet is invisible. A pocket screw on a table apron or a face frame is a hole you have to explain.
The whole difficulty of doweling is one thing, and every pick below is a different answer to it: the holes in board A and the holes in board B have to be in the same place, parallel, and the same depth. Miss the position by a sixteenth and the joint will not close. Drill at a few degrees off square and the parts twist. That is it. That is the entire problem.
The lens, in order. Bushing material first — a hardened steel bushing keeps a bit on line for years, and a plastic guide wears oval on the first project. Published capacity second, because only two of these jigs state the stock thickness they handle, and one of the two states the largest figure on the page. How it is held third: a handheld jig is only as square as your grip, and a self-clamping jig removes that variable entirely. What is actually in the box last, and this is where the price comparison inverts — one pick here includes the bits and the pins, and several of the pricier ones include neither.
Prices are live and brackets in the prose are qualitative, because they move. Every spec on every card below was read from that seller’s own listing on the date shown on the card. Jig listings publish very little — no body material on three of them, no bushing sizes at all on two, and not one accuracy tolerance anywhere — so where a listing states no figure the card says “Not listed” rather than guessing. Here is exactly what we do instead of testing.
How this is funded: we earn a commission if you buy through our links, at no extra cost to you. It never changes which tool we recommend, and we’ll tell you plainly when to skip one. Full disclosure.
Quick picks
Ranked on the specs that matter for a beginner and honest buyer fit. Select a row to jump to the full write-up. We haven’t hands-on-tested these — here is exactly what we do instead.
#
Product
Best for
Price
1

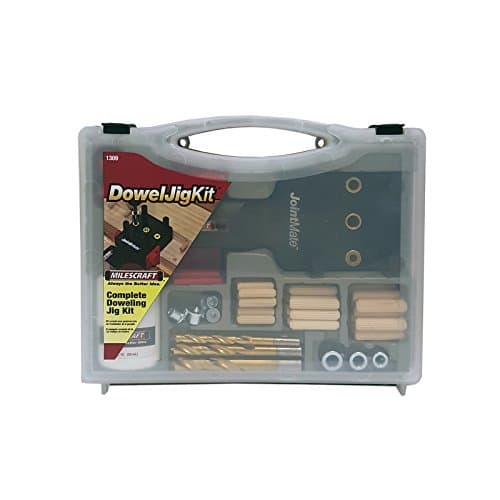

Milescraft 1309 DowelJigKit Complete Doweling Kit
The only pick here that arrives able to cut a dowel joint with nothing else bought: the jig, three sizes of metal bushing, matching brad-point bits, steel dowel centers and the dowel pins themselves. For a first shop that is the whole argument - a cheaper jig plus the bits plus the pins usually costs more and takes three orders.
The cheapest honest way to find out whether you like dowel joinery, and the only pick here that publishes its stock range: 1/2 in to 1-1/2 in. Three metal bushing sizes, self-centering pins and a removable fence for about the price of lunch - buy it, cut four joints, and then decide whether a self-clamping jig is worth four times as much.
Self-clamping and all-aluminum, which together remove the two failure modes of a cheap handheld jig: the jig moving while you drill, and the body flexing when you squeeze it. Retractable edge stops are the real feature - they put the dowels in the same place on every board without a single measurement.
Kreg's answer to the dowel jig, and the obvious pick if you already own one of this site's pocket-hole picks and want the two systems to feel the same in the hand. Removable hardened-steel drill guides plus an alignment pin is the right mechanism for repeat holes down a cabinet side, which is the job it is built for.
Rockler 3/8 in Doweling Jig Kit with Drill Bit and Stop Collar
One dowel size, one bit, one stop collar, and a depth scale molded into the back of the jig - a single-purpose tool that does the single most common dowel joint well. If almost all of your doweling is 3/8 in into nominal 1x stock, buying the one size you use is cheaper and simpler than buying three you do not.
The old American pattern: a solid, precision-hardened steel center block with no plastic in the load path and, in the listing's own words, no loose parts to get lost. It is the buy-once pick on this page, and the one whose accuracy does not depend on how hard you are squeezing it.
The consumable, and the only item here you will buy twice. Four hundred birch pins across the three sizes every jig on this page drills, with the fluting and chamfered ends that actually matter: the flutes give squeezed-out glue somewhere to go, and the chamfer is what stops a pin mushrooming at the mouth of the hole.
AUTOTOOLHOME ZH0151 Dowel Center Set, 8-Piece, 1/4 to 1/2 in
The cheapest item in this whole lane and the one that fixes the actual problem with dowel joints. Drill the first board, drop these in the holes, press the second board on, and the scribe points mark your matching holes exactly where they have to be. They do not replace a jig for the first board, but they make the second board stop being the hard part.
The only pick here that arrives able to cut a dowel joint with nothing else bought: the jig, three sizes of metal bushing, matching brad-point bits, steel dowel centers and the dowel pins themselves. For a first shop that is the whole argument - a cheaper jig plus the bits plus the pins usually costs more and takes three orders.
Strengths
+Brad-point bits in 1/4, 5/16 and 3/8 in are in the box, and a brad point is what keeps a dowel hole from wandering off the mark
+Steel dowel/tenon centers included, so you can transfer hole positions to the mating board instead of measuring twice
+Fluted hardwood dowel pins with chamfered ends in three sizes, so the first joint happens the day it arrives
+Metal bushings rather than drilling through plastic, which is what decides whether hole two is parallel to hole one
Trade-offs
−The listing is flagged "Old Version Imperial" and "Original Version", so this is the older pattern - Milescraft's newer 1332 and 1334 are the current jigs
−No stock thickness capacity is stated on this listing, unlike the 1332's published 1/2 in to 1-1/2 in range
−Handheld jigs like this are only as square as the hand holding them; the self-clamping 1334 removes that variable
−82 items in the pack sounds generous until you notice most of them are dowel pins, which cost very little loose
Type
Dowel jig kit
In the set
82 pieces
Material / build
Not listed; metal bushings, steel centers
Key spec
1/4, 5/16, 3/8 in bushings + matching brad-point bits, dowel centers and pins
Best for
Best overall, and the only complete kit here
Worth knowing. The listing states that the jig "allows for quick and accurately doweled corner, edge or surface joints", that "metal bushings included to ensure accurate alignment When drilling", "steel dowel/Tenon centers for durable and accurate location marking", "fluted hardwood dowel pins with chamfered ends ... (Includes 3 different sizes)", and "brad point drill bits included in 3 different sizes (1/4\", 5/16\", 3/8\")". Part number 13090003, model 1309; unit count 82; listing size field "Old Version Imperial". No stock thickness capacity is published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.
#2Best cheap way to try doweling

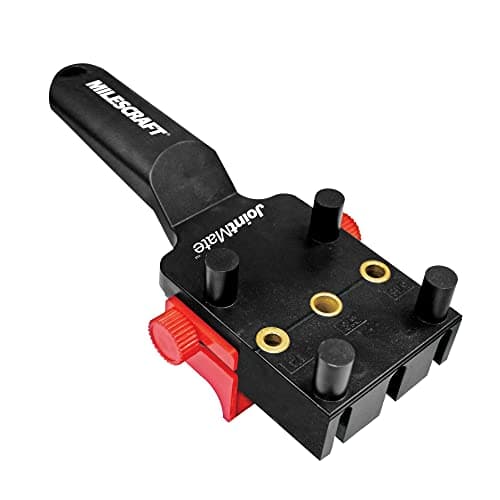

Milescraft 1332 Joint Mate Handheld Dowel Jig
The cheapest honest way to find out whether you like dowel joinery, and the only pick here that publishes its stock range: 1/2 in to 1-1/2 in. Three metal bushing sizes, self-centering pins and a removable fence for about the price of lunch - buy it, cut four joints, and then decide whether a self-clamping jig is worth four times as much.
Strengths
+Publishes a real capacity - works with 1/2 in to 1-1/2 in thick lumber, which no other jig here states
+Three metal bushing sizes (1/4, 5/16, 3/8 in) and self-centering pins, so it is a complete jig and not a stripped one
+Removable adjustable fence for edge and surface joints as well as corners
+Listing states no exposed or covered mechanical fasteners, so there is nothing to work loose
Trade-offs
−You hold it. Any pressure that is not square to the face tilts the hole, and the jig will not stop you
−No drill bits and no dowel pins included - the 1309 kit above is the version that comes with both
−No body material is published; the only material statement is that the bushings are metal
−At this price the tolerances are what they are; it is a jig to learn on, not one to batch a kitchen with
Type
Handheld dowel jig
In the set
Single tool
Material / build
Not listed; metal bushings
Key spec
1/4, 5/16, 3/8 in metal bushings; fits 1/2-1-1/2 in stock; removable fence
Best for
Best cheap way to try doweling
Worth knowing. The listing states "3 Metal Bushing Sizes (1/4\", 5/16\", 3/8\") and Self-Centering Pins, Includes Removable Fence", that it "allows for quick and accurately doweled corner, edge or surface joints", is "equipped with an adjustable fence for easy alignment", has "minimal set-up with no exposed or covered mechanical fasteners", and "works with 1/2\" to 1-1/2\" thick lumber". Part number and model 1332; weight 0.65 lb; size field "New Version Imperial". Body material is not published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.

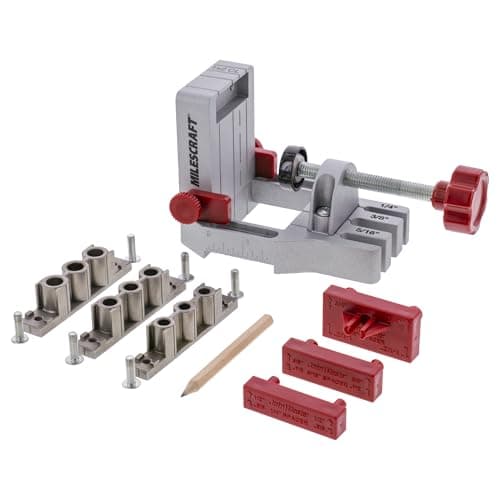

Self-clamping and all-aluminum, which together remove the two failure modes of a cheap handheld jig: the jig moving while you drill, and the body flexing when you squeeze it. Retractable edge stops are the real feature - they put the dowels in the same place on every board without a single measurement.
Strengths
+Clamps itself to the work, so both hands are on the drill and nothing shifts mid-hole
+All-aluminum construction, stated not to flex or bend - the one thing a plastic-bodied jig cannot promise
+Retractable edge stops automatically align boards so the dowels land in the same spot on each one
+Handles edge, corner and surface joints in 1/4, 5/16 and 3/8 in with hardened steel bushings
Trade-offs
−No capacity figure is published - nothing states the maximum stock thickness it will clamp
−No drill bits and no dowel pins included, despite the price being three times the Joint Mate's
−Centering spacers are included, which means centering is a setup step rather than automatic as on the Dowl-It
−A clamping jig has more moving parts to go out of adjustment than a solid steel block
Best self-clamping jig, and the best for repeat joints
Worth knowing. The listing states that it "creates all styles of dowel joints- edge, corner, and surface", is "for 1/4in, 5/16in, and 3/8in dowel pins", that the "durable all-aluminum construction wont flex or bend", that "retractable edge stops automatically align boards to position dowel pins in same location", and that "hardened steel bushings provide long lasting, accurate dowel hole drilling". Part number and model 1334; weight 1 lb. No maximum stock thickness is published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.
#4Best for cabinets and repeat holes

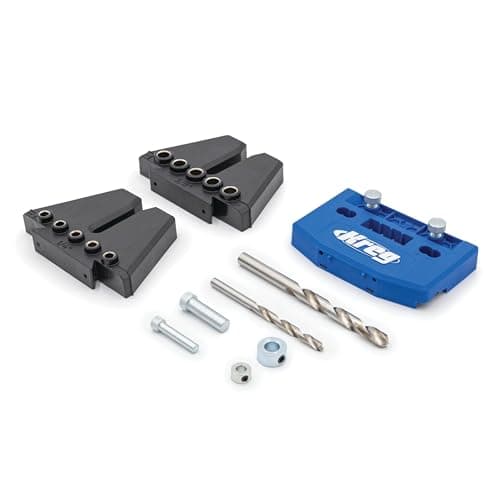

Kreg Dowel Jig Kit (KHJD345)
Kreg's answer to the dowel jig, and the obvious pick if you already own one of this site's pocket-hole picks and want the two systems to feel the same in the hand. Removable hardened-steel drill guides plus an alignment pin is the right mechanism for repeat holes down a cabinet side, which is the job it is built for.
Strengths
+Removable drill guides mean you index off a hole you have already drilled instead of measuring each one - the alignment pin is what makes a row of holes repeat
+Hardened steel guides, which is the part that wears first on a cheap jig
+Built-in centering, so it references the stock rather than a line you drew
+Listing states it works with trigger clamps, which this site's clamp picks already cover
Trade-offs
−No dowel pins and no drill bit are stated as included, so the real cost is this plus a bit set plus pins
−No bushing diameters are published on the listing at all, which for a dowel jig is the one spec that decides what it can do - verify before ordering
−No model number is published, only the KHJD345 part number
−Among the more expensive jigs here, and the Kreg name is part of what you are paying for
Best for cabinets and repeat holes, especially if you already own Kreg
Worth knowing. The listing states that the kit "provides accurate cabinet and woodworking joint alignment, with removable drill guides and built-in centering", that you "create repeatable dowel holes using hardened steel drill guides and an alignment pin", and that "the durable jig works with trigger clamps". Part number KHJD345; no model number is published. No bushing diameters, drill bit or dowel pins are listed as included.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.
#5Best single-size jig

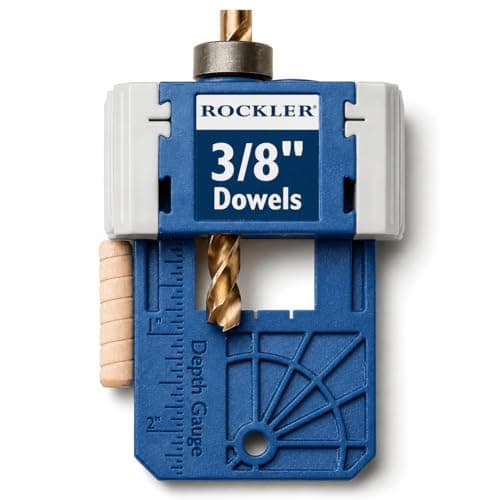

Rockler 3/8 in Doweling Jig Kit with Drill Bit and Stop Collar
One dowel size, one bit, one stop collar, and a depth scale molded into the back of the jig - a single-purpose tool that does the single most common dowel joint well. If almost all of your doweling is 3/8 in into nominal 1x stock, buying the one size you use is cheaper and simpler than buying three you do not.
Strengths
+Matching drill bit and stop collar in the box, so hole depth is set once and repeated - the thing beginners get wrong most often
+Depth scale molded into the back of the jig means setting the collar is a reading, not a measurement
+Two guided holes with steel bushings and dual stops for either edge of the workpiece
+Dovetailed ways let the stop slide out of the way rather than coming off and getting lost
Trade-offs
−3/8 in only on this listing. A 1/4 in dowel into 1/2 in stock is a different purchase
−No part number and no model number are published, which makes re-ordering the right size version harder than it should be
−The listing's own copy is sloppy - it calls the product a dovetail jig and a pocket hole jointer drill bit in two different bullets, which is not confidence-inspiring even though the title and contents are clear
−No dowel pins included
Type
Single-size dowel jig kit
In the set
Single tool
Material / build
Steel bushings
Key spec
3/8 in; includes matching bit, stop collar and hex key; molded depth scale
Best for
Best single-size jig for 3/8 in dowels
Worth knowing. The listing states "Pack Includes: (1) Rockler Centering Doweling Jig (choose from several sizes), (1) Matching Drill Bit, (1) Matching Stop Collar, and (1) Hex Key", that "a depth scale is molded into the back of the jig to make setting the drilling depth dead simple", that "dual stops of the jig kit provide perfect alignment on either edge of the side", and that "dovetailed ways make it easy to slide the stop out of the way". The title specifies the 3/8" version with steel bushings. No part number or model number is published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.
#6Best built, buy once

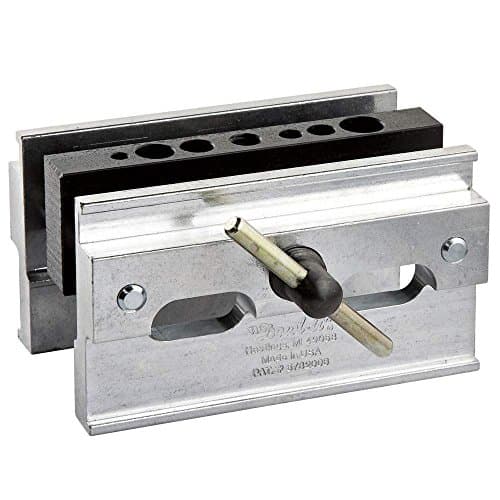

Dowl-It 1000 Self-Centering Doweling Jig
The old American pattern: a solid, precision-hardened steel center block with no plastic in the load path and, in the listing's own words, no loose parts to get lost. It is the buy-once pick on this page, and the one whose accuracy does not depend on how hard you are squeezing it.
Strengths
+Solid steel, precision-hardened center block - the only pick here whose body material is stated as steel rather than left unlisted
+Self-centering by design, so the holes land on the middle of the stock without a setup measurement
+No loose parts, which on a shop tool used twice a year matters more than any feature
+Published 2 in capacity, the largest stated on this page
Trade-offs
−The most expensive jig here by a wide margin, and roughly six times the price of the Joint Mate
−No drill bits, bushings list, dowel pins or dowel centers are stated as included
−The listing's feature bullets are five short phrases - "Self Centering", "Easy to use", "Fast & Precise" - with no bushing sizes published at all
−Sold under the Rockler brand field on Amazon with Dowl-It as the stated manufacturer, which makes the listing look inconsistent even though the title and part number match
Type
Self-centering dowel jig
In the set
Single tool
Material / build
Solid precision-hardened steel center block
Key spec
Self-centering; 2 in stated capacity
Best for
Best built, and the pick to buy once
Worth knowing. The listing's feature bullets state "Self Centering", "Easy to use", "Solid steel center block, precision hardened", "Fast & Precise" and "No loose parts to get lost". Part number and model 1000; size field "2\""; weight 2.35 lb; brand field ROCKLER with manufacturer DOWL-IT. No bushing sizes and no included accessories are published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.

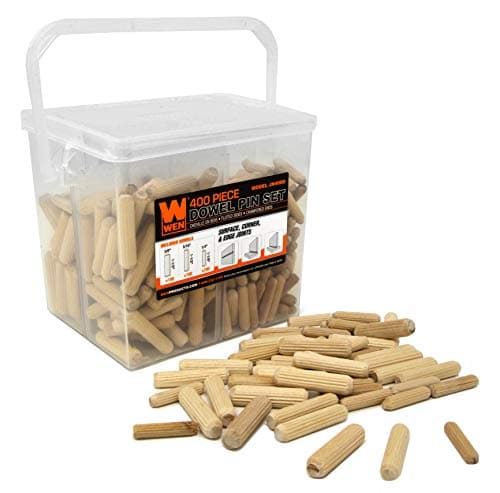

The consumable, and the only item here you will buy twice. Four hundred birch pins across the three sizes every jig on this page drills, with the fluting and chamfered ends that actually matter: the flutes give squeezed-out glue somewhere to go, and the chamfer is what stops a pin mushrooming at the mouth of the hole.
Strengths
+Covers all three standard sizes - 200 at 1/4 x 1-1/8 in, 100 at 5/16 x 1-1/2 in and 100 at 3/8 x 1-1/2 in
+Fluted, and the listing states the flutes expand on contact with water-based glues - which is how a dowel joint locks rather than just fills
+Chamfered ends, so the pin enters without tearing the rim of the hole
+Birch, a close-grained hardwood, rather than an unnamed softwood
Trade-offs
−Length is fixed per size. If your stock calls for a 2 in pin in 3/8 in, this bucket cannot supply it
−Nothing on the listing states the moisture content, and a dowel that has sat in a damp garage will swell in the hole before the glue does
−No diameter tolerance is published - a pin a few thousandths over will not enter a bushing-drilled hole without a tap
−A bucket is bulk: you will still have most of them in five years
Type
Fluted dowel pins
In the set
400 pieces
Material / build
Birch hardwood
Key spec
200 x 1/4 x 1-1/8 in; 100 x 5/16 x 1-1/2 in; 100 x 3/8 x 1-1/2 in
Best for
Best dowel pin assortment to buy with any jig
Worth knowing. The listing states "Includes 1/4 by 1-1/8 inch dowels (200 pieces), 5/16 by 1-1/2-inch dowels (100 pieces), and 3/8 by 1-1/2-inch dowels (100 pieces)", that the "fluted design expands on contact with water-based glues for maximum reinforcement", and that they are "made from birch wood with chamfered ends for easy installation". Part number and model JN400D. No moisture content and no diameter tolerance are published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.
#8Best for transferring holes

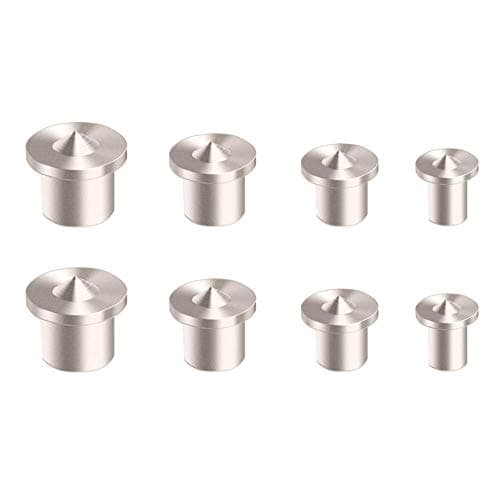

AUTOTOOLHOME ZH0151 Dowel Center Set, 8-Piece, 1/4 to 1/2 in
The cheapest item in this whole lane and the one that fixes the actual problem with dowel joints. Drill the first board, drop these in the holes, press the second board on, and the scribe points mark your matching holes exactly where they have to be. They do not replace a jig for the first board, but they make the second board stop being the hard part.
Strengths
+Removes the measurement that goes wrong - the second board's holes are marked off the first board's actual holes, not off a ruler
+Eight centers, two each of 1/4, 5/16, 3/8 and 1/2 in, which covers every bushing size on this page plus one larger
+Steel with a built-in centering pin and a sharp scribe point, so the mark is a dimple a brad-point bit can find
+Comes with a storage case, which for eight small steel objects is not a trivial feature
Trade-offs
−They mark, they do not drill. Hole angle on the second board is still entirely down to you - or to one of the jigs above
−No steel grade or hardness is published, and a scribe point that dulls stops leaving a usable mark
−A no-name brand with a trading-company manufacturer; there is no spec sheet behind this listing beyond the bullets
−Only useful if the first set of holes is accurate, so this is an addition to a jig and not an alternative to one
Type
Dowel / tenon centers
In the set
8 pieces
Material / build
Steel
Key spec
2 each of 1/4, 5/16, 3/8 and 1/2 in; centering pin and scribe point; case included
Best for
Best for transferring holes to the mating board
Worth knowing. The listing states that the set "accurately transfers dowel hole positions from one wood piece to another", that a "built-in centering pin helps locate the center of the dowel hole", that the "sharp scribe point leaves a clear mark on the mating wood surface", and "Includes 8 dowel/tenon centers: 2 each of 1/4\", 5/16\", 3/8\", and 1/2\" diameter. Comes with a storage case". Part number and model ZH0151; weight 0.13 lb; manufacturer JYC International Trade Co., Ltd. No steel grade or hardness is published.
Specs read from the product listing, on October 23, 2026. “Not listed” means the listing doesn’t state that figure.
Why a dowel joint is stronger than a pocket screw, and where it is not
A pocket screw works in withdrawal: the threads grip one board and the screw head pulls the joint together. That is a strong clamp and a modest joint, because all the load is carried on the screw threads in one piece of wood — and the Wood Handbook’s own data on screw withdrawal shows how much that depends on the density of the wood you are driving into.
A dowel works in shear across its own cross-section, with glue surface on all sides of a round hole in both boards. Two 3/8 inch dowels put a surprising amount of long-grain glue area into a joint that has almost none otherwise, and the fluting on a proper dowel pin means the squeezed-out glue has somewhere to go rather than hydraulically locking the pin before it seats.
Where the dowel loses is speed and forgiveness. A pocket screw pulls a joint closed even if your layout was a little off; the screw is the clamp. A dowel joint has no self-correcting mechanism at all. Your holes are either right or the joint does not close. And it needs clamping while the glue cures, so the real tooling cost of dowel joinery is the jig plus enough clamps — our clamps for beginners guide covers those, and for a frame or a box the corner and band clamps are what close four dowelled corners at once inside the glue’s open time.
The broader argument — when a fastener is the right answer and when it is a shortcut you will see later — is in our joinery vs fastening explainer, and wood joints explained puts the dowel in context against the other joints a first shop can realistically cut.
Self-centering, self-clamping, or neither?
Three mechanisms, and the words get used loosely on listings, so here is what each actually means for your results.
Self-centering means the jig references both faces of the board and puts the hole on the middle of the thickness without you measuring anything. The Dowl-It 1000 and the Rockler jigs work this way, as do the Milescraft 1332 and 1333 via self-centering pins. It is the feature that removes the most common beginner error, which is a hole that is centered on one board and offset on the other.
Self-clamping means the jig grips the work so it cannot shift while you drill. Only the 1334 Joint Master does this here, and it is the single biggest accuracy upgrade available on this page: a handheld jig moves, and you will not feel it move. The Kreg kit takes the middle road — it works with trigger clamps you already own, which is nearly as good and costs nothing extra if you have them.
Neither describes the cheap handheld jigs, and they still work — carefully, slowly, on stock held in a vise. If your shop has a bench vise, a handheld jig on clamped stock is considerably more accurate than the same jig held in mid-air, which is how most people use one and why most people conclude dowel jigs do not work.
Dowel centers: the cheapest fix for the hardest half of the job
The dowel center set is the least expensive item on this page and the one that will surprise you most. Drill the holes in board A. Drop a steel center into each hole. Press board B against them in exactly the position you want it. The scribe points leave a dimple on board B precisely where its holes must go.
That removes the measurement entirely — board B is marked off board A’s actual holes, not off a ruler and not off a layout line that might have been a sixteenth out. You still need the jig (or a very steady hand) to drill those marks square, which our guide to drilling straight holes covers, and a brad-point bit whose center spur will find the dimple instead of skating off it. But the hardest half of a dowel joint stops being hard.
It is also why the 1309 kit includes dowel centers and matters that it does. Several far more expensive jigs here include none.
Depth is the spec nobody thinks about until the joint will not close
Two holes that are correctly placed and perfectly square will still fail to close if they are too shallow for the pin. A 1-1/2 inch dowel pin needs a fraction over 3/4 inch of hole in each board, plus clearance for glue. Drill one hole at 5/8 inch and the pin bottoms out before the shoulders meet, and you will spend ten minutes convinced your alignment is wrong.
Two of the picks here solve this properly. The Rockler kit ships a matching bit and a stop collar, with a depth scale molded into the back of the jig so setting the collar is a reading rather than a measurement — and dovetailed ways so the stop slides out of the way rather than coming off and getting lost. The 1309 kit includes its brad-point bits. Everything else here leaves depth to you, and the free solution is a wrap of masking tape around the bit at the right depth, which works perfectly well and has to be re-done every time you change bits.
Which dowel size, and how many
The three standard sizes are the three every jig on this page drills: 1/4, 5/16 and 3/8 inch. The rule of thumb that keeps you out of trouble is to use a dowel no more than half the thickness of the stock, because a hole larger than that leaves too little wood either side and splits on assembly.
In practice that means 1/4 inch dowels in 1/2 inch stock, 5/16 inch in a true 3/4 inch board, and 3/8 inch once you are into nominal 1x and thicker — 3/8 inch being the size most cabinet and furniture work uses, which is why the single-size Rockler kit is a 3/8 inch jig. Two dowels per joint is the normal count; two resist rotation where one does not, and more than two adds very little except more opportunities to be out of position.
Buy the pins rather than cutting your own. A proper fluted pin with chamfered ends does two things a length of dowel rod cannot: the flutes give glue an escape path, and the chamfer lets the pin enter without tearing the rim of the hole. The WEN bucket covers all three sizes, and the glue that goes with them is in our wood glue roundup — yellow PVA is the right answer, and its three-to-six-minute open time is why you dry-fit a dowel joint before you wet it.
Honest omissions
Three things this page does not sell, named rather than substituted.
There is no doweling machine or biscuit joiner here. Both are faster and both are several times the price of every jig on this page combined, which puts them outside the empty-garage brief this whole site is written to. There is no drill press pick on this page either, even though a drill press plus a fence is the most accurate way to drill a dowel hole in a face — that is a machine purchase, and it has its own page in our drill press roundup. And no brad-point bit set is featured, because two of the jigs here include the bits they need; if yours does not, our drill bit picks and the brad point vs twist bit comparison explain why a brad point is not optional for this job.
The verdict
Buy the Milescraft 1309 kit if you are starting from nothing. Jig, metal bushings, matching brad-point bits, dowel centers and the pins in one box is the cheapest complete route to a working dowel joint, and the complete route is the one that actually gets used.
Buy the Milescraft 1332 Joint Mate to find out whether you like dowel joinery before committing. It is the only jig here that publishes its stock range — 1/2 to 1-1/2 inch — and it costs very little.
Buy the Milescraft 1334 Joint Master if your first attempts came out twisted. Self-clamping and all-aluminum removes the two reasons a handheld jig drifts, and retractable edge stops make a row of joints repeat.
Buy the Kreg kit if you are building cabinets, already own trigger clamps, and want the alignment pin that indexes each new hole off the last one. Verify the bushing sizes before ordering — the listing publishes none.
Buy the Rockler 3/8 inch kit if almost all your doweling is 3/8 inch into nominal 1x stock. One size, with the bit and the stop collar that set depth properly, beats three sizes you will not use.
Buy the Dowl-It 1000 if you would rather buy once. A solid hardened steel center block with no loose parts is the only pick here whose accuracy does not depend on plastic, and it is priced accordingly.
Buy the WEN pin bucket and the dowel centers whatever else you buy. Together they cost less than the cheapest jig, and the centers in particular fix the half of the job that actually goes wrong.
Frequently asked questions
Are dowel joints stronger than pocket holes?+
In the independent bench test this site cites, yes, by a clear margin: dowel joints failed at 160, 160 and 149 lb - a 156 lb average - against 99 lb average for pocket-hole joints in the same spruce, loaded the same way. Mortise-and-tenon samples reached 222 lb. The practical read is that a dowel joint sits roughly halfway between the fast joint and the traditional one, and leaves no visible plug.
What size dowel should I use?+
No more than half the thickness of the stock, which in practice means 1/4 inch dowels in 1/2 inch stock, 5/16 inch in a true 3/4 inch board, and 3/8 inch in nominal 1x and thicker. A hole larger than half the thickness leaves too little wood either side and the joint splits on assembly. Two dowels per joint is the normal count - two resist rotation where one does not.
Do I need a self-centering dowel jig?+
It is the single most useful feature for a beginner. Self-centering means the jig references both faces of the board and places the hole on the middle of the thickness with no measurement, which removes the most common failure - a hole centered on one board and offset on the other. Self-clamping is the next upgrade: a handheld jig can shift while you drill and you will not feel it move.
What are dowel centers and do I need them?+
Small steel plugs with a centering pin and a scribe point. You drill the holes in the first board, drop a center into each hole, and press the second board against them - the scribe points mark exactly where its holes must go. They remove the measurement from the hardest half of the job, they cost less than any jig here, and several expensive jigs do not include them.
Can I use regular dowel rod instead of dowel pins?+
You can, and it is worse in two specific ways. A proper dowel pin is fluted, so glue squeezed out of the hole has an escape path instead of hydraulically locking the pin before it seats, and its ends are chamfered so it enters without tearing the rim of the hole. Cut lengths of dowel rod also run oversize on diameter often enough to be a real nuisance in a bushing-drilled hole.
How deep should a dowel hole be?+
Split the pin length between the two boards and add a little clearance for glue - so a 1-1/2 inch pin wants a fraction over 3/4 inch in each piece. Getting this wrong is a common and confusing failure: the pin bottoms out before the shoulders meet and the joint looks misaligned when it is actually just too shallow. A stop collar sets depth repeatably; a wrap of masking tape on the bit does the same job for free.
Do I still need clamps for a dowel joint?+
Yes, and this is the hidden cost. A pocket screw is its own clamp - the screw pulls the joint closed. A dowel joint has no self-closing mechanism at all, so it needs real clamping pressure while the glue cures. Yellow PVA gives three to six minutes of open assembly time, so dry-fit the joint before you add glue and have the clamps already set up.
Is a dowel jig better than a biscuit joiner?+
Different trades, and for an empty-garage shop the price settles it. A biscuit joiner is a dedicated power tool costing several times every jig on this page combined, and biscuits excel at alignment more than strength. A dowel jig is cheap, needs only a drill, and the dowel carries more load. The biscuit joiner wins on speed if you are doing this all day, which is not the brief this site is written to.
Sources
Woodgears — Testing pocket holes against mortise and tenon and dowel joints — An independent bench test on spruce, loaded 15 cm from the joint: pocket-hole samples failed at 95, 120, 75 and 105 lb (99 lb average), dowel joints at 160, 160 and 149 lb (156 lb), and mortise-and-tenon samples with yellow glue at 235, 235 and 195 lb (222 lb). A follow-up adding glue to the pocket-hole joints averaged 111 lb, and the author's conclusion was that glue does not make these joints stronger (accessed September 4, 2026)
USDA Forest Service, Forest Products Laboratory — Wood Handbook (FPL-GTR-190), Chapter 8: Fastenings — The "Wood Screws" section, pages 8-10 to 8-12. "The root diameter for most sizes of screws averages about two-thirds the shank diameter." Withdrawal "varies directly with the square of the specific gravity of the wood" and, within limits, "directly with the depth of penetration of the threaded portion and the diameter of the screw" — so "the longer lengths of standard screws are therefore superfluous in dense hardwoods." The withdrawal equation "is applicable when screw lead holes have a diameter of about 70% of the root diameter of the threads in softwoods, and about 90% in hardwoods." End-grain withdrawal, "when splitting is avoided," averages 75% of side-grain. For lateral load the screw must penetrate the member holding the point by at least seven times the shank diameter, and the side member should be about half that depth. "Screws should always be turned in. They should never be started or driven with a hammer because this practice tears the wood fibers and injures the screw threads, seriously reducing the load carrying capacity of the screw." Soap or a similar lubricant "is recommended to facilitate insertion, especially in dense woods, and it will have little effect on ultimate withdrawal resistance." Table 8-9 gives shank diameters by gauge: #6 0.138 in, #8 0.164 in, #10 0.190 in, #12 0.216 in. In particleboard, withdrawal "is not significantly different for lead holes of 50% to 90% of the root diameter," and "care must be taken when tightening screws in particleboard to avoid stripping the threads" (accessed October 2, 2026)
Titebond — Titebond II Premium Wood Glue product page — Cross-linking polyvinyl acetate. Application temperature above 55°F; open assembly time 3-5 minutes and total assembly time 10-15 minutes at 70°F/50% RH; passes ANSI Type II water resistance; "U.S. FDA approved for indirect food contact (cutting boards)"; dried film translucent yellow; shelf life 24 months. Not for continuous submersion, below the waterline, or structural or load-bearing use. Item 5004 is the 16 oz bottle (accessed September 18, 2026)
